Hardware

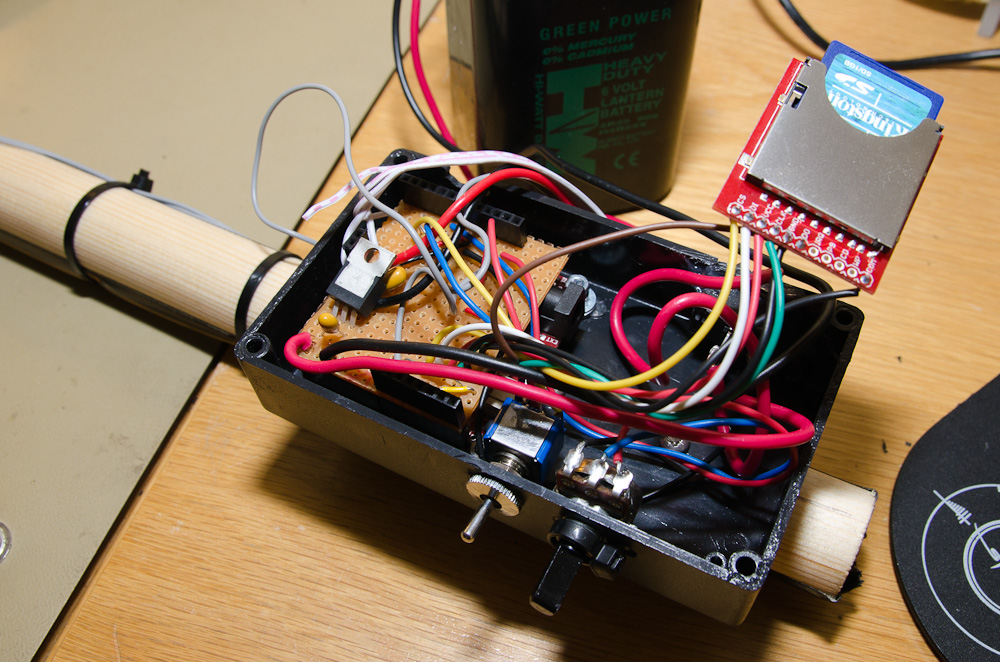

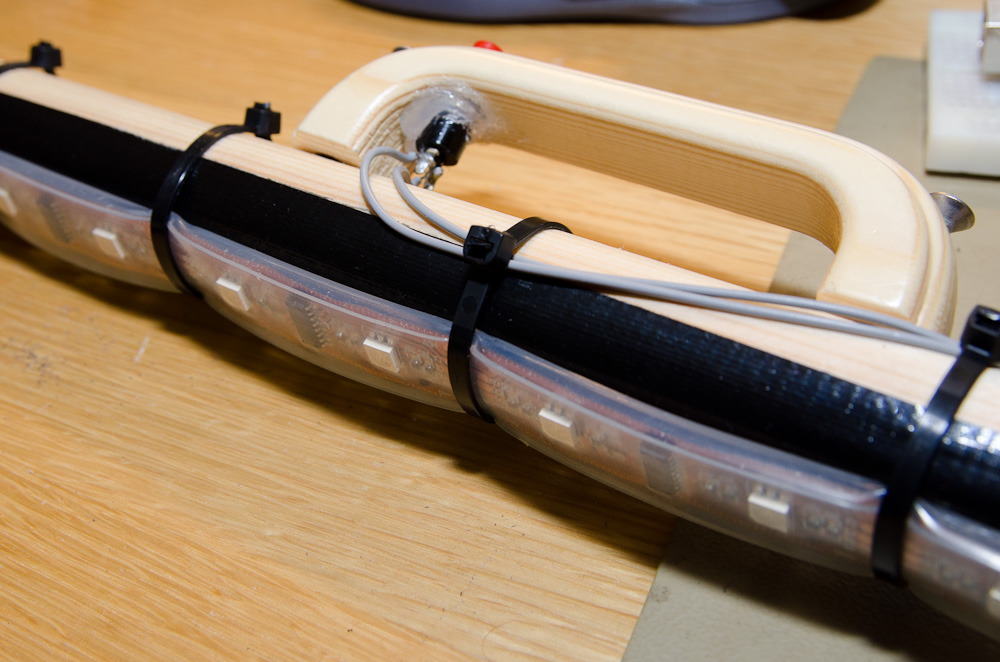

The hardware is quite simple. A Maple board from Leaf Labs is used as the main board. The LED strip is a HL1606 controlled LED strip from Adafruit. The images is stored on a SD Card, interfaced with SPI.

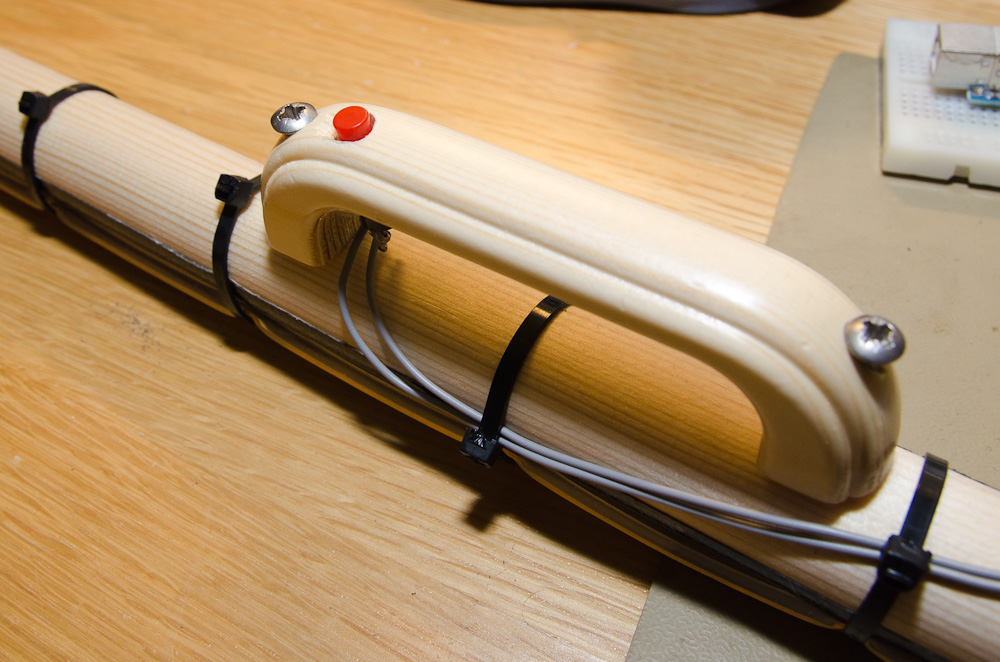

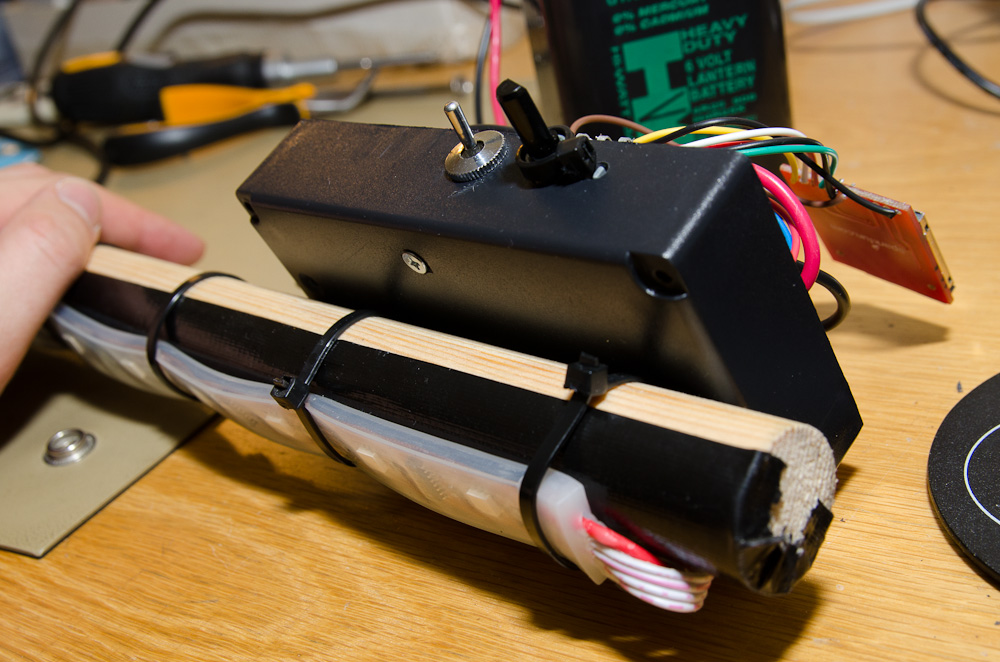

User input is from a potentiometer, a button and a 2-way button. You set the speed with the potentiometer, select the image with the 2-way button and fire of the image with the normal button.

A 6V lantern battery is used to power everything. A LM1084IT-5.0 is used to get the 5V needed for the light strip. The Maple board has built in power regulator for 3.3V.
Hardware

Hardware

Hardware

Hardware
